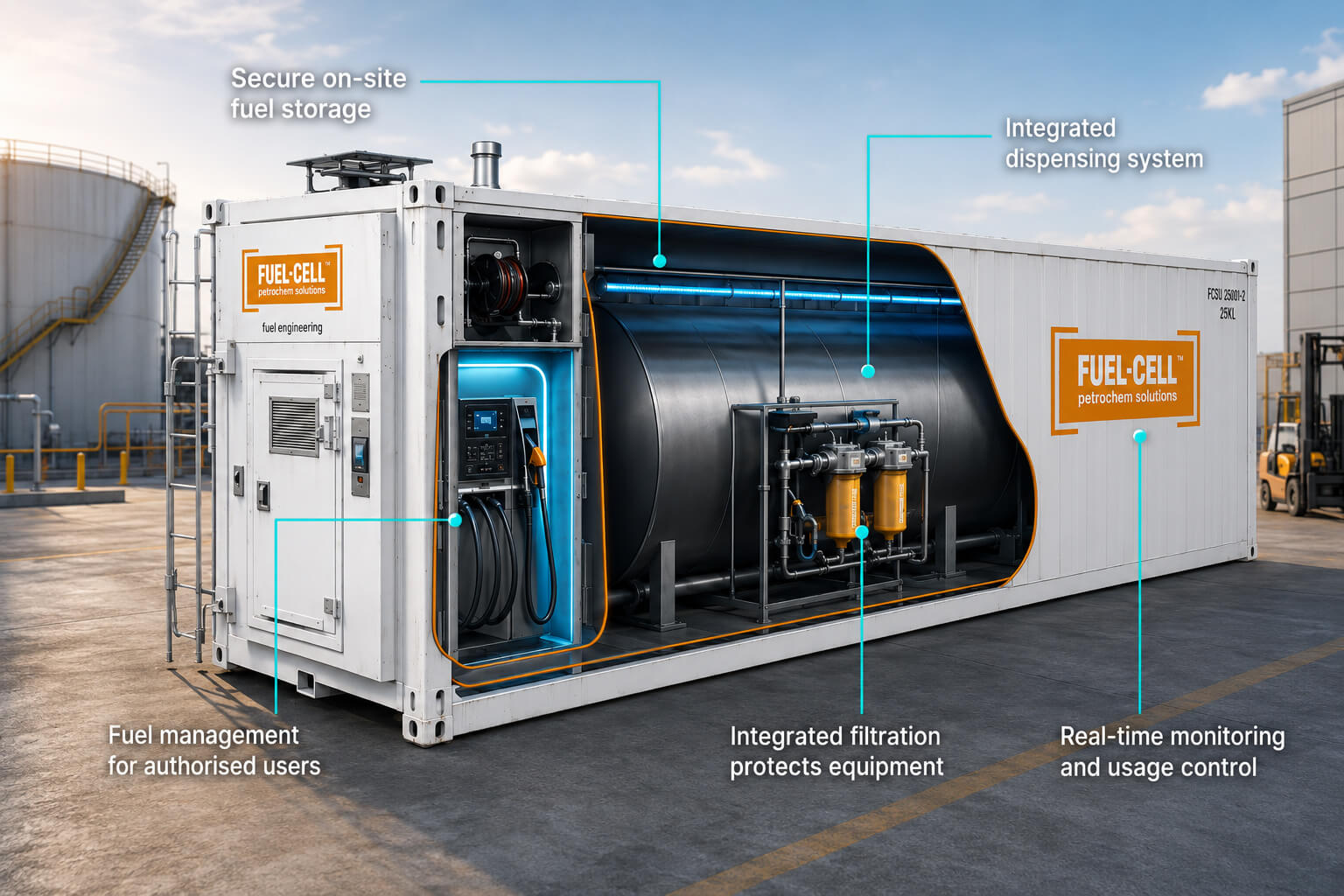

FUEL-CELL: Premium on-site fuel storage and dispensing
A secure, fully integrated solution for storing and dispensing fuel directly where your machinery, vehicles and equipment operate.
Efficient, on-site fuel storage and dispensing, where your operations need it.
Increase productivity and efficiency with our Fuel-Cell™
Bulk Fuel Savings
Save money through bulk fuel purchases
Fuel Management
Dispense and monitor usage with access for authorised users only and full usage logs
Increased Productivity
Reduce downtime with on-site, on-demand 24hr refuelling
Integrated filtration
Ensures you’re using clean fuel and not damaging equipment/vehicles

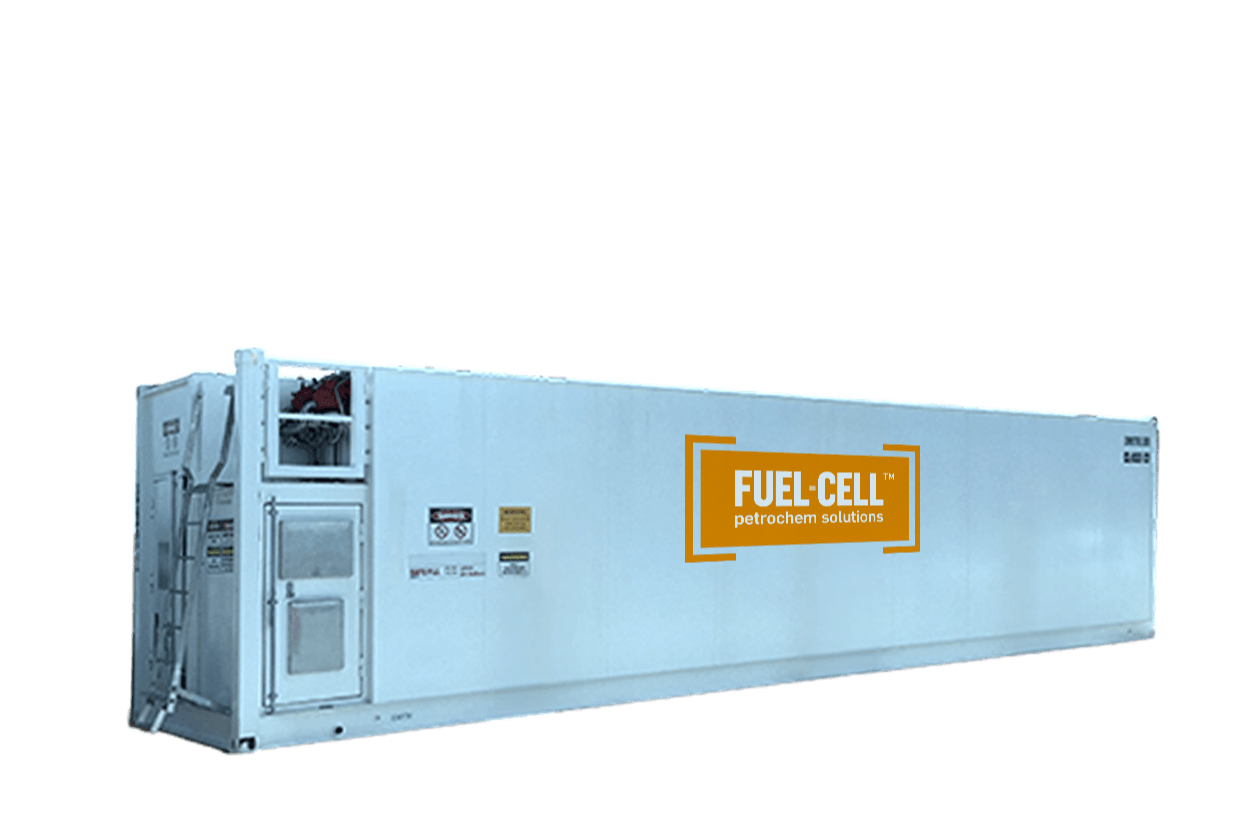

Fuel-Cell™ Bulk Storage
TRL Engineering’s Fuel-Cell™ Bulk Storage solutions can be tailor-made to your requirements.
Delivered in sizes from 11,000 to 110,000 litres they are ideal for small and large scale refuelling requirements. Fitted with the latest technology custom fuel systems and TRL’s range of quality features as standard.
| Model Number | Safe Fill Level (Litres) | Length x Width x Height (mm) | Weight KG (Empty) | Bund Included N = Bulk Tank |
|---|---|---|---|---|
| TOS-12 | 11000 | 2990 x 2438 x 2896 | 7900 | |
| TOS-18 | 17100 | 2990 x 2438 x 2896 | 8000 | |
| TOS-30 | 28500 | 6058 x 2438 x 2896 | 8500 | |
| TOS-38 | 35000 | 6058 x 2438 x 2896 | 14000 | |
| TOS-68 | 64500 | 12,192 x 2438 x 2896 | 14050 | |
| TOS-75 | 70688 | 12,192 x 2438 x 2896 | 16000 | |
| TOS-84 | 81000 | 13,716 x 2438 x 2896 | 16800 | |
| TOS-100 | 95000 | 14,038 x 2438 x 3200 | 17456 | |
| TOS-110 | 110000 | 14,038 x 2438 x 3635 | 19850 | |
| TOS-RPB-STD | N/A | 1133 x 2438 x 2896 | 1200 | N/A |
| TOS-SCU-3MT | N/A | 2917 x 2150 x 200 | 1035 | N/A |

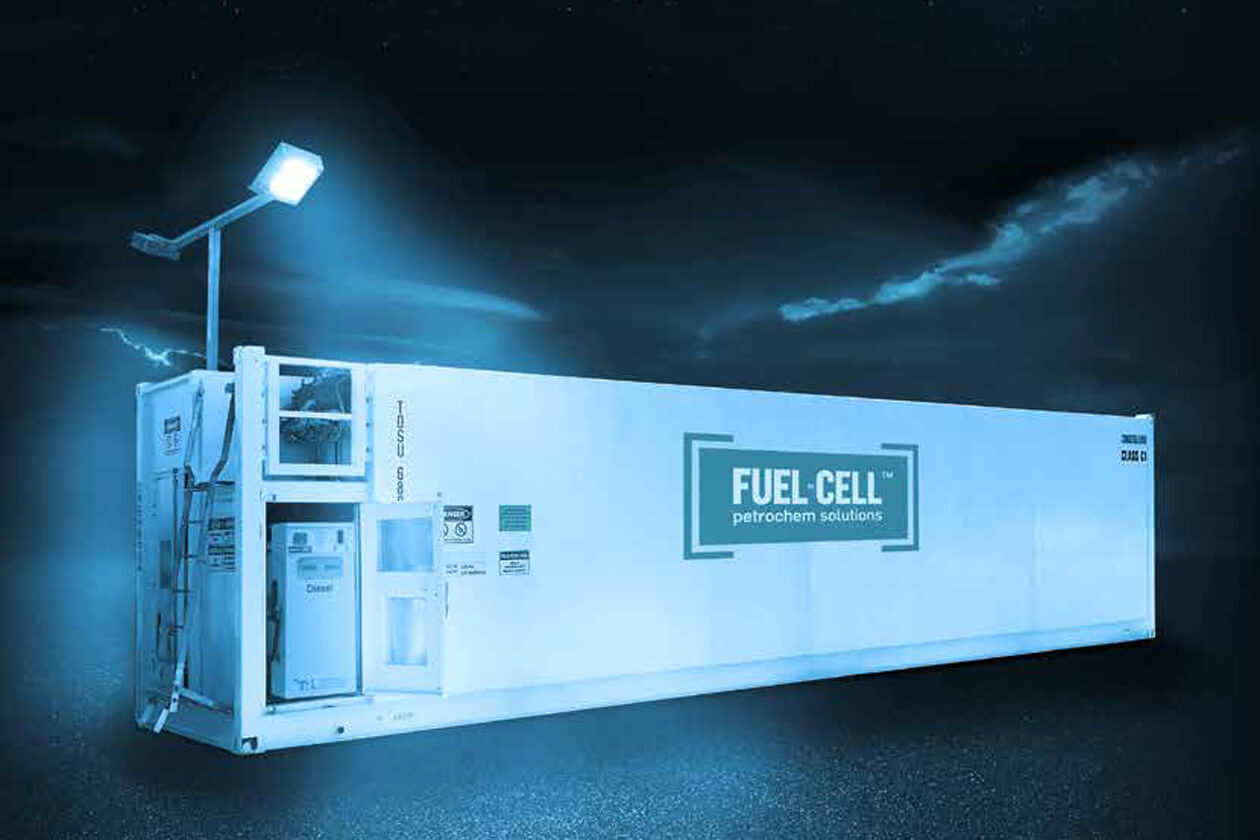

Fuel-Cell™ Portable Fuel Stations
Designed to minimise your footprint and maximise storage capacity.
TRL’s Fuel-Cell™ Portable Fuelling Stations are supplied with the latest technology custom fuel systems, including unmanned fuel stations with card access.
Our fuelling stations offer a high level of integrated sophistication design and delivery, and are available in 3 sizes from 13,000 to 30,000 litres.
| Model Number | Safe Fill Level Litres | Length x Width x Height (mm) | Weight KG (Empty) |
|---|---|---|---|
| PFS-13 | 13000 | 3812 x 2175 x 2350 | 3500 |
| PFS-20 | 20000 | 5512 x 2237 x 2350 | 8100 |
| PFS-30 | 30000 | 5512 x 2237 x 2350 | 8400 |
Certifications
AS 1692-2006
Steel tanks for flammable and combustible liquids
AS 1940-2004
The storage and handling of flammable and combustible liquids
UL 142
Aboveground Flammable Liquid Tanks
One solution for every industry
The Fuel-Cell™ range incorporates all the features required for safe operation by the end-user, and is fitted with our XYZ dispensing and fuel management system.
- Quick and easy installation where you need it - with minimal site works or interruptions to your business
- Manufactured to the highest of standards
- Reduces travel and fuelling turnarounds
- Increases productivity
- Overfill protection
- Low maintenance and user friendly
From agriculture to defence installations, TRL Engineering’s range of Fuel-Cell™ Bulk Storage Tanks and Portable Fuel Stations are trusted to deliver.
Fuel Management. Built In.
Dispense, Manage and Control your fuel usage
Custom Fuel Management Systems to suit your needs across the Fuel-Cell™ range. Be in control and dispense and monitor all your fuel usage and levels with USB and remote access and logging for up to 2000 users.
The Fuel-Cell™ range incorporates all the features required for safe operation by the end-user including overfill protection, as well as being manufactured to the highest of standards. TRL Engineering supplies the Fuel-Cell™ tank series fitted with dispensing and fuel management system for quick and easy installation with minimum site works.
Contact TRL Engineering for an obligation free assessment of your businesses refuelling practises to see where time and resources can be utilised better by installation of your own Fuel-Cell™.
- Agribusiness
- Aviation Facilities
- Commercial Installations
- Defence Facilities
Ready to supercharge your site?
Contact TRL Engineering today for a no-obligation free assessment of your refuelling practices.
